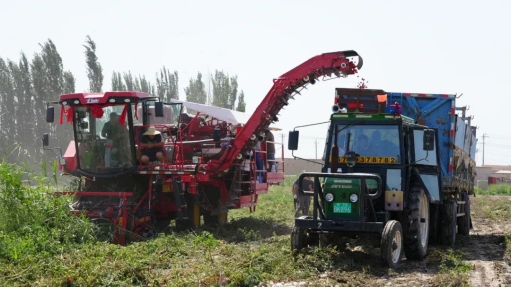

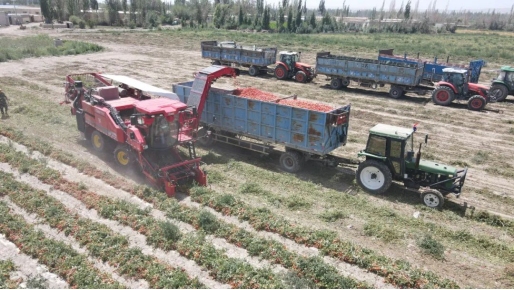

Agricultural harvesting machine for tomato
☆ Machine body is a frame structure, key past of the machine are using high strength material with features of firmly and reliable, it can move 500mm laterally, and the automatic leveling system provides excellent stability.
☆ Camera and lighting configurations are added to key areas such as conveying and unloading to make operation and maintenance more convenient and safer.
☆ The luxury cab is equipped with air condition and heating. The driving interface is intuitive and convenient, the functional areas are clearly divided, and the operation is simpler.
☆ The machine is equipped with powerful Cummins engine, and is equipped with active back-blowing cooling system, which makes the heat dissipation performance of the engine and hydraulic system better and the operation more stable.
☆ The fuel tank adopts a main and auxiliary fuel tank configuration to reduce the number of refueling times and improve harvesting efficiency.
☆ The hydraulic four-wheel driving and four-wheel steering system ensures optimal traction and maneuverability under all working conditions.
☆ The hydraulically controlled profiling mechanism allows the cutting table to fit the ground more closely, reducing soil load and making the machine easier to control.
Description
Tomato harvester with model of 4FZ-1.5 is the first batch of domestic tomato harvesting equipment independently developed and produced by our company in 2024, filling the gap in the domestic industry. After several rounds of harvesting tests, our products can reach the harvesting capacity of 85 tons per hour, containing 2% impurity rate and 1.3% crushing rate. The technical indicators have reached the international advanced level of similar products.
Specification
Item | Unit | SPEC | |
Maximum Operation Efficiency | t/h | 80 | |
Rated Power | Kw/hp | 221/296 | |
Overall Dimension(L*W*H) | Transportation Position | mm | 11510x3490x3650 |
Working Position | mm | 11510x5400x6200 | |
Weight | Kg | 13740 | |
Fuel Capacity | Main fuel tank | L | 220 |
Auxiliary fuel tank | L | 180 | |
Working Width | mm | 1500-1900 | |
Walking Method | / | Full-time hydraulic four-wheel drive | |
Walking Speed | Cotton Field Grade 1 | Km/h | 0-6 |
Cotton Field Grade 2 | Km/h | 0-9 | |
Highway Road 1 | Km/h | 0-16 | |
Highway Road 2 | Km/h | 0-27 | |
fruit Vine Separation Mechanism | / | Three component vibrator | |
Color Sorter Channel | pcs | 48 | |
Wheel Base | mm | 2750 | |
Highway Turning Radius /m | m | 5.3 | |
Cotton Field Turning Radius /m | m | 4 | |
Tire Specification | Guide Pulley | / | 175LR-24 |
Driving Wheel | / | 175LR-24 | |
Wheel Base | Guide Pulley | mm | 1650 |
Driving Wheel | mm | 1650 | |
Maximum Unloading Height | mm | 4000 | |

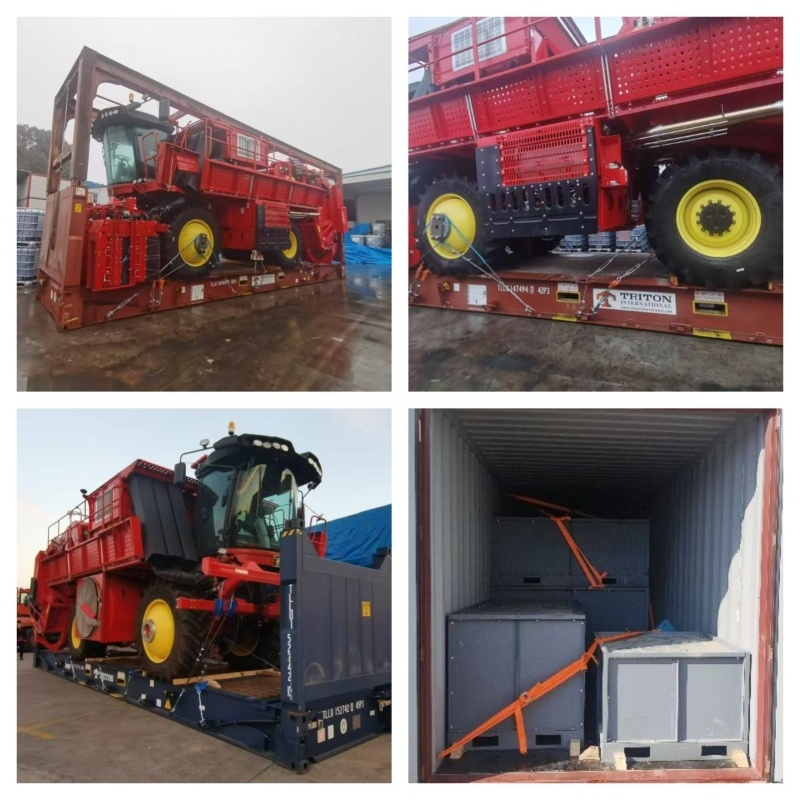

Packing and Delivery
Company Information
Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a listed company owned by Shandong Supply and Marketing Cooperatives. Its predecessor was founded in 1946. It collects scientific research & development, precision production ,marketing service and capital operation into a whole, and specially provides one-stop supply and service for mechanized ,intelligentized & informatized cotton processing equipments .Products have been exported to over 30 countries. The domestic market share ranks top for several years. The marketing service network spreads all over world main cotton production area.
Based on cotton machinery as main business, the company focuses on promoting the transformation and upgrading of cotton industry, creating a new era of smart factory, creating the first brand of cotton machinery in the world, actively expanding to the intelligent agricultural machinery equipment industry, and fully stepping into high-end equipment manufacturing industry.
