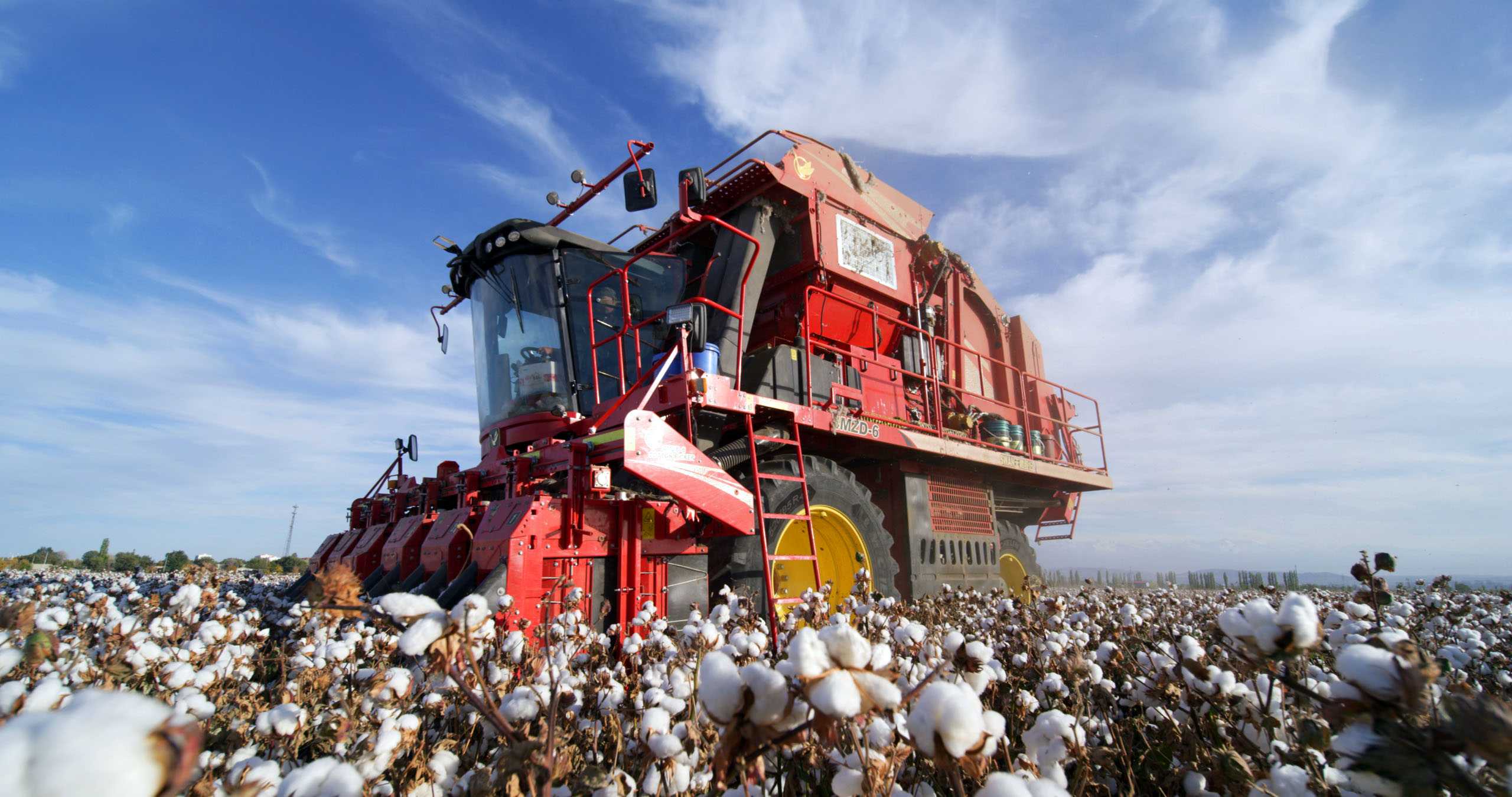

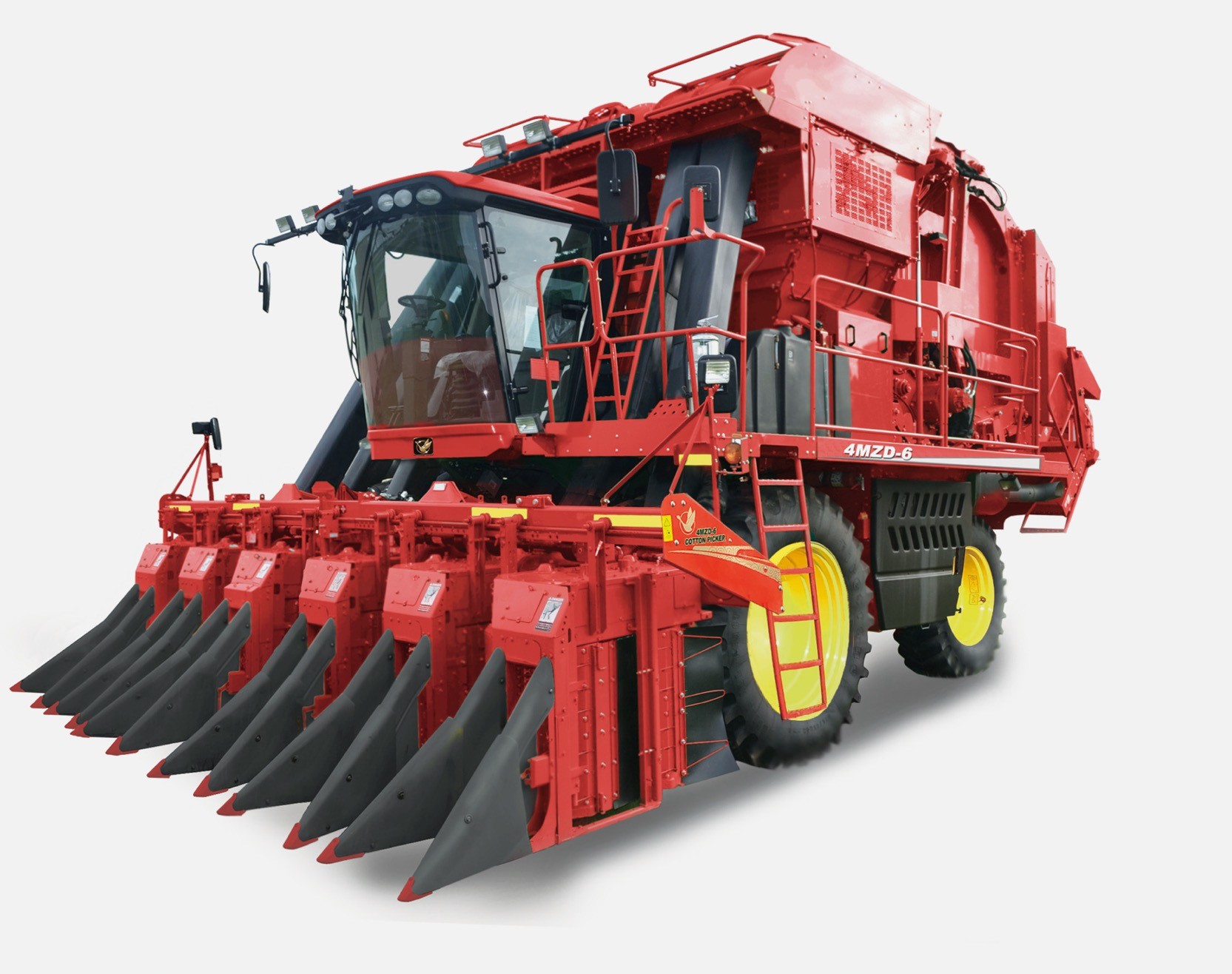

Cotton Harvesting Machine
1. High picking rate, less damage to fiber, low impurity rate of picking cotton, keep the natural form.
2. It is powered by a 770-horsepower Cummins engine , four-wheel drive,strong momentum.Using the newly designed PRO16 high-speed picking head, the highest picking speed can reach 7.1 km/h, which is more than 30% more efficient than the ordinary box-type six-row machine.
3. The packing system adopts controllable continuous uniform cotton discharge technology and forced feeding system, which effectively reduces the chance of clogging. The diameter of the cotton module can be adjusted according to the field conditions, and the bale weight can be from 700kg to 2200kg.
4. Equipped with high power and high efficiency fan, strong wind, reduce congestion, good effect of exhaust.
5. Independently designed high-end cab, power shift gearbox, hydraulic clutch box, man-machine interface, user-friendly design to make operation more comfortable.
6. The vehicle adopts CAN bus intelligent control system, which can realize automatic monitoring, fault alarm, moisture detection, automatic alignment, automatic driving and other functions.
Products Introduction
4MZD-6 six-row self-moving cotton packing and picking machine is a new product developed by our company according to market demand. It can efficiently complete the picking and packaging of cotton, convenient transportation, and can effectively avoid the loss of cotton in transportation. At present, it has been widely used in cotton harvesting in Xinjiang, the main cotton producing area in China. Because of its high net rate, low failure rate, stable performance and other characteristics, it has won unanimous praise from users. Overall, cotton harvester machines play a vital role in the cotton industry, making the harvesting process faster, more efficient, and less labor-intensive. They have revolutionized cotton harvesting and have become an essential tool for cotton farmers worldwide.
Product Details

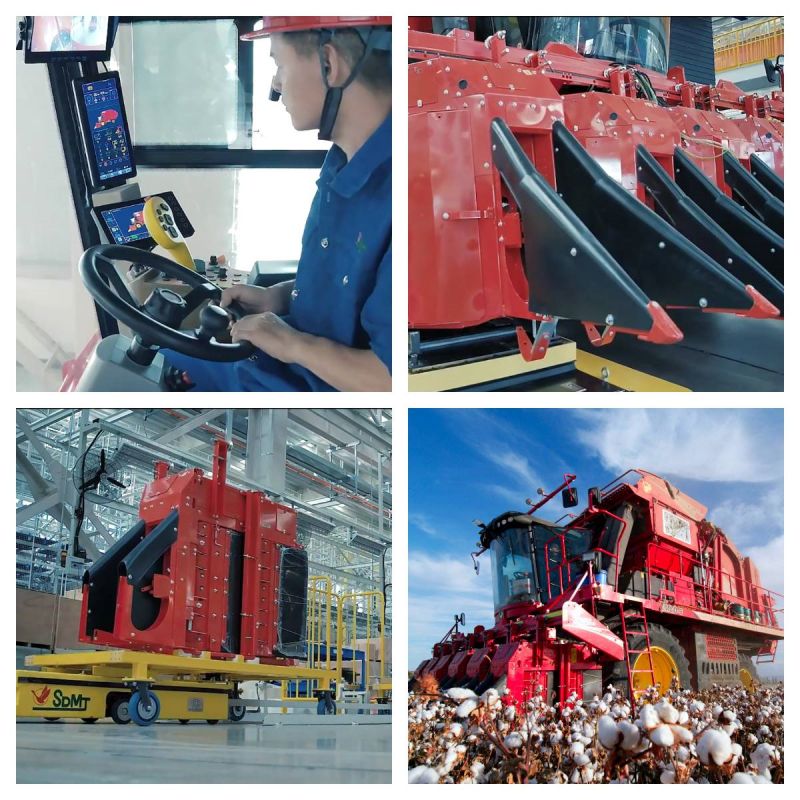

(1). Car style design luxurious and comfortable cab, seats and control device may be adjusted according to the needs of the driver.Equipped with air conditioning, USB interface and 12V power supply, providing users with a better driving experience.
(2) Better service.Each cotton picking machine is equipped with 2-3 technical and maintenance personnel to ensure uninterrupted operation of the cotton picking machine and timely troubleshooting. Equipment application area with spare parts warehouse, to achieve all-weather spare parts supply, customers can enjoy the original spare parts brought comfort and excellence.
(3) Higher work efficiency.With a more powerful 770 horsepower Cummins engine, equipped with the latest design of pickup head, the maximum pickup speed can reach 7.1 km/h, and the work efficiency can be improved by more than 30%.
(4) Intelligent control.Through the vehicle man-machine interface, the status and data of the cotton picker can be mastered in real time, which is convenient for users to make relevant plans and decisions quickly and timely.
Technical Parameters
Project | Unit | Parameter | ||
The Machine Parameters
| ||||
Net Weight | T | 30 | ||
Driving Speed | Cotton Field | Grade I | KM/H | 7.1 |
Grade II | 8.5 | |||
Highway | Grade I | 15 | ||
Grade II | 27 | |||
Engine Rating | KW | 570 | ||
Minimum Turning Radius | M | 6.7 | ||
Machine Size (Transport) L x Wx H
| MM | 11940x3200x4360 | ||
Machine Size (Picking) L x Wx H | MM | 10135x5945x5245 | ||
Wheelbase | MM | 4318 | ||
Drive Mode | MM | 4WD | ||
Parameters for Cotton Picking Head | ||||
Number of Cotton Picking Head
| Pcs | 6 | ||
Number of Seat Tube | Pcs | Front 16,back 12
| ||
Number of Picking Spindle per Seat Tube | Pcs | 20 | ||
Total Picking Spindles | Pcs | 3360 | ||
Capacity Parameters | ||||
Cotton Module Weight | KG | 700-2200 | ||
Diesel Oil Tank | L | 1400 | ||
Cleaning Fluid Tank | L | 1363 | ||
Grease Box | L | 257 |
Special Transportation Solution
According to the previous delivery experience, there are certain differences in the structure and size of the cotton picker and the conventional equipment. Therefore, in cross-border transportation, we will use special packaging and packing schemes to ensure product safety and no damage.
Product Inspection
Shandong Swan Cotton Industrial Machinery Stock Co.,Ltd will carry out strict comprehensive testing for each factory product, mainly including the following contents:
(1). Functional test: Check whether the function of the product is working properly. This can be done by operating the product for functional testing or by using specific test equipment to verify the performance and functionality of the product.
(2). Label and instruction manual inspection: Check whether the label and instruction manual of the product are accurate, clear, complete, and comply with the relevant regulations and standards.
(3). Safety testing: Check whether the product meets the relevant safety standards and regulatory requirements. This can include testing for electrical safety, mechanical safety, chemical safety, etc.
Company Strength
Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a listed company owned by Shandong Supply and Marketing Cooperatives. Its predecessor was founded in 1946. It collects scientific research & development, precision production ,marketing service and capital operation into a whole, and specially provides one-stop supply and service for mechanized ,intelligentized & informatized cotton processing equipments .Products have been exported to over 30 countries. The domestic market share ranks top for several years. The marketing service network spreads all over world main cotton production area.
Based on cotton machinery as main business, the company focuses on promoting the transformation and upgrading of cotton industry, creating a new era of smart factory, creating the first brand of cotton machinery in the world, actively expanding to the intelligent agricultural machinery equipment industry, and fully stepping into high-end equipment manufacturing industry.

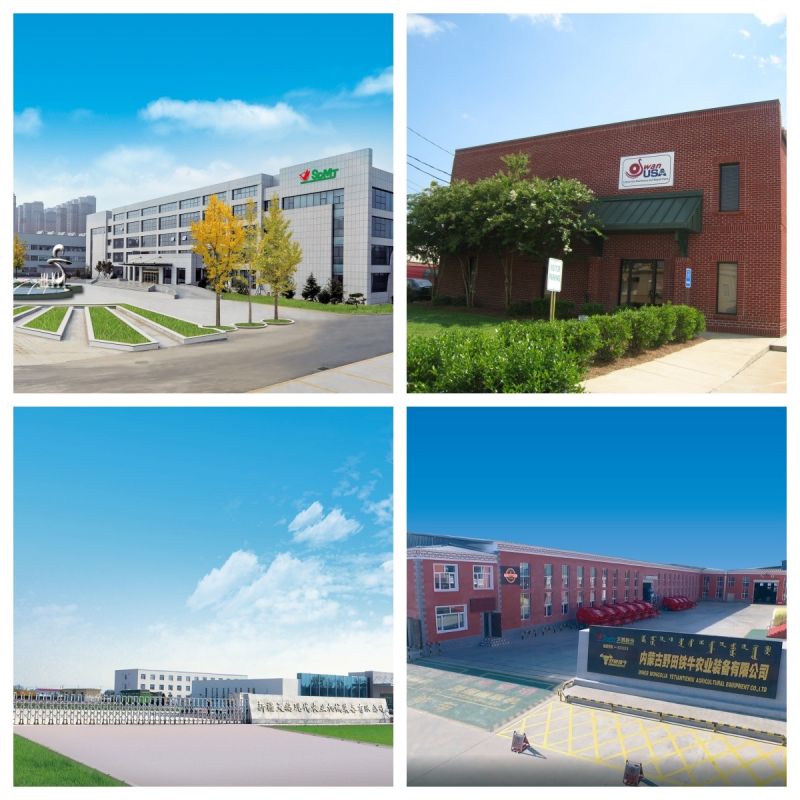

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd has four technical centers and manufacture bases in Jinan Shandong, Wujiaqu Xinjiang, Hailar Inner Mongolia and Montgomery USA , three national high-tech enterprises and six provincial innovation platforms , leading the technological progress of the industry for many years.It is a high-tech enterprise in Shandong Province, the technical support unit of "National Key Promotion Program of Scientific and Technological Achievements" and the undertaking unit of "13th five-year plan" National Key Research & Development Program.
