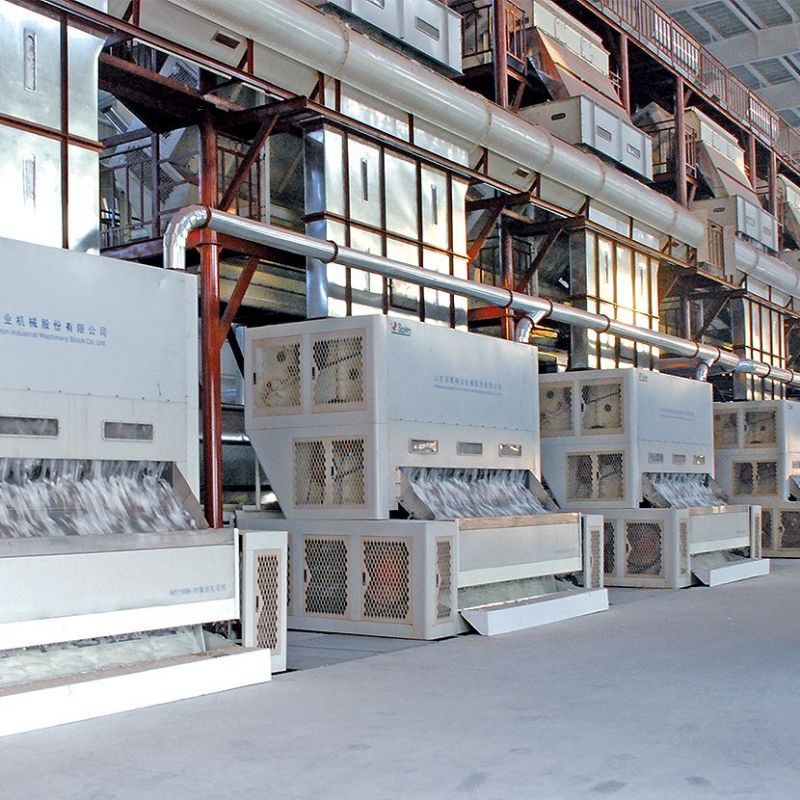

Ginning Machine

1. New type of cotton extracting and feeding structure, high efficiency on trash removing, cotton moving down continuously and evenly without flying dust.

2. New design parameters for the work box, more conducive to the running of cotton roll, free adjustment of motes rate.

3. Intelligent control, with safe operation rate not less than 98%.

4. Adopting technology of middle box discharging seeds, high output and low power consumption, strong adaptability to the processing of high moisture cotton.

5. Adopting saws imported from America, high output and long life, good ginning quality.

6. Scientific and reasonable machine structure, stable and reliable operation, easy maintenance.

7. Adopting streamlined visual protection cover, safe and environment protection.


  Contact Now E-mail Telephone WhatsApp
Product Details

Product Introduction

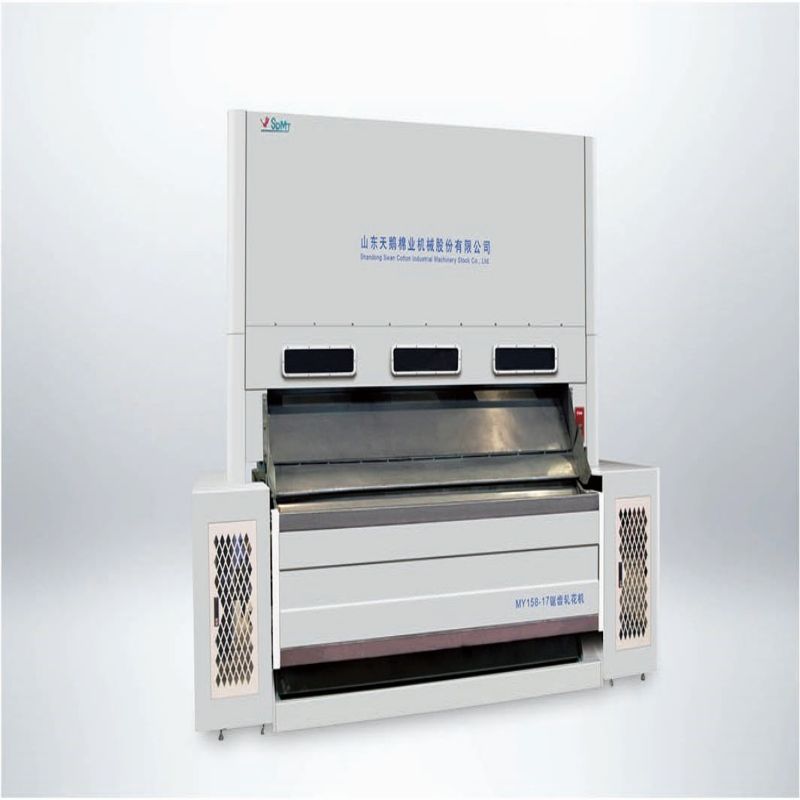

MY158-17 model cotton ginning machine is specifically designed for separating fibers from the cotton seeds and cleaning the cotton seeds. It is equipped with high-quality imported components and its product design concept is aligned with international leading standards. The processed lint cotton exhibits superior quality, low impurity content, excellent form, and possessing strong market competitiveness, thereby creating higher economic value for our customers.

Features

1. Seed extraction system: The gin separates the seeds from the cotton fibers.This can be achieved by screening systems, pneumatic conveyors, or gravity mechanisms that can direct seeds to a separate collection chamber.

2. Automatic control: many modern cotton gins have advanced automation and control systems.These systems monitor and adjust machine speed, airflow, and other parameters to optimize start-up efficiency and reduce fiber damage.

3. Safety features: the cotton gin is equipped with safety devices to protect workers and prevent accidents.These functions may include an emergency stop, protection, and detect and prevent any abnormal operation of the sensor.

Technical Specification

Model

MY158-17

Designed output(kg/h)

1100-1800

Equipped power(kw)

64.75

Lint ginning quality

Achieved or exceed national standard for ginned cotton of same

Noise

90dB(A)

Pieces of saws(pcs)

158

Diameter of saws(mm)

Φ406

Saw spacing(mm)

17

Diameter of brush cylinder(mm)

Φ380

Overall dimension(W*L*H)(mm)

3138*4068*3508.5

Machine weight(kg)

8100



Packing and Delivery

We supporting customized method of packing for buyers.

(1). Each machine will be transported to the destination port through a container. We will reinforce the machine when putting it in the container to ensure that the quality of the product is not damaged

(2). The whole product loading process and container seal will be recorded by photo or video, the whole process is visible and controllable.

(3). Cooperate with reliable shipping company, key time nodes are updated in real time.

 packing and delivery.jpg

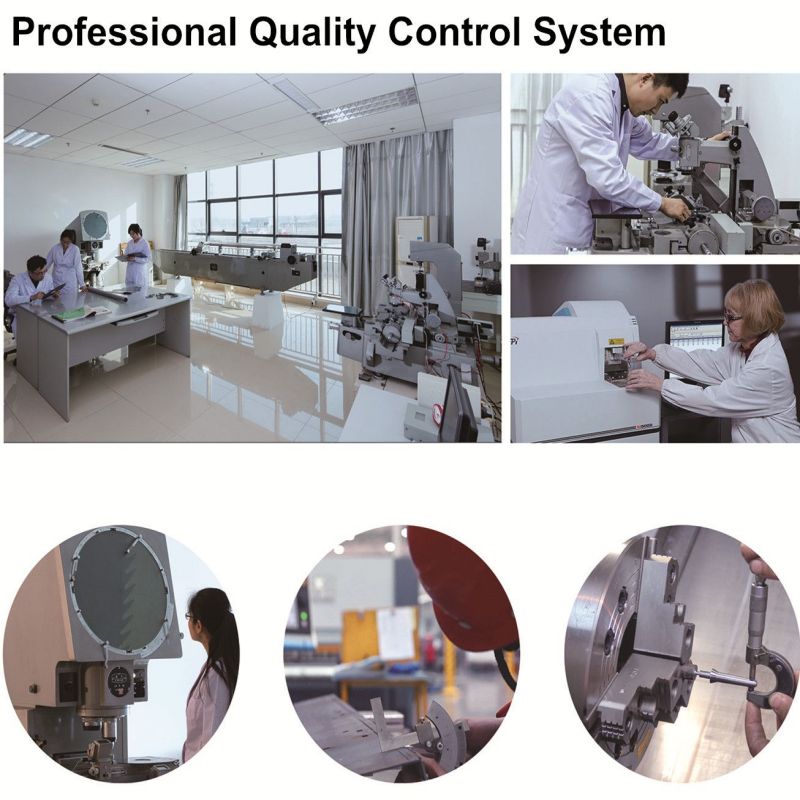

Product Quality Control

(1). Appearance inspection: Check whether the appearance of the product meets the requirements, including color, shape, size, surface finish and so on. This can be done by visual inspection or using auxiliary tools (e.g. microscopes, measuring instruments).

(2). Functional testing: Inspectors check whether the function and performance of the product is normal by operating the product, performing functional tests, or using specific test equipment.

(3). Safety testing: Check whether the product meets the relevant safety standards and regulatory requirements. This can include testing for electrical safety, mechanical safety, chemical safety, etc.

(4). Packaging inspection: check whether the packaging of the product is intact, whether the label is clear, and whether the packaging materials meet the requirements. This ensures that the product is not damaged during transportation and storage, and that it can be properly identified and identified.

 Product Inspection.jpg

Usage method

1. Connect the piano to a power source: Make sure the piano is properly plugged into a nearby electrical outlet to power it.

2. Clean the cotton gin: Before using the machine, make sure there are no remaining cotton fibers or previously used debris.Clean any excess lint or residue on the gin to prevent clogging or damage.

3. Put the raw cotton into the feeder: Put the raw cotton into the feeder of the cotton gin.Be sure to spread the cotton evenly on the feeder so that it can pass smoothly through the machine. Avoid overloading the feeder, as this can lead to clogging or inefficiency.

4. Start the gin: Depending on the specific model of the gin, there may be a power button or a lever to start the machine. Start the gin according to manufacturer's instructions.Normally, you need to turn on the power and start the gin.

5. Ensure smooth operation: pay close attention when the mill starts to work.Ensure smooth and uninterrupted delivery of cotton to the machine.According to the need to adjust the machine to keep the steady flow of cotton.

6. Collection of processed cotton: When the cotton gin separates the seeds and fibers, the processed cotton is collected for various purposes.You can use cotton for spinning, weaving, or whatever else you want.

7. Turn off the piano and clean up: After the piano is used, turn off the machine and cut off the power supply.Clean any cotton fibers or debris left on the gin to make sure the gin is ready for next use.


Company Information

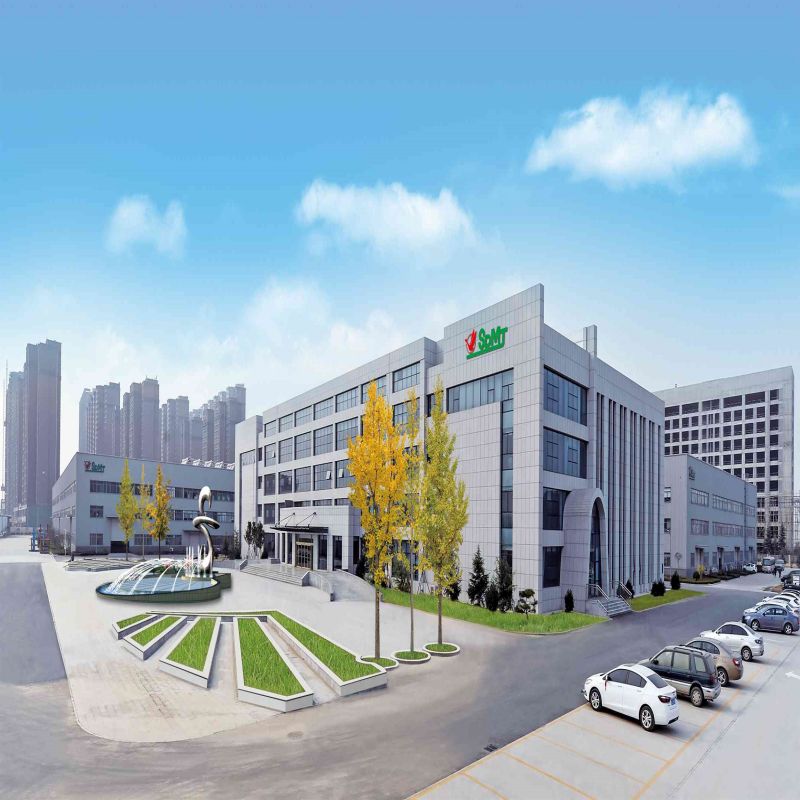

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a listed company owned by Shandong Supply and Marketing Cooperatives. Its predecessor was founded in 1946. It collects scientific research & development, precision production ,marketing service and capital operation into a whole, and specially provides one-stop supply and service for mechanized ,intelligentized & informatized cotton processing equipments .Products have been exported to over 30 countries. The domestic market share ranks top for several years. The marketing service network spreads all over world main cotton production area.

Based on cotton machinery as main business, the company focuses on promoting the transformation and upgrading of cotton industry, creating a new era of smart factory, creating the first brand of cotton machinery in the world, actively expanding to the intelligent agricultural machinery equipment industry, and fully stepping into high-end equipment manufacturing industry.

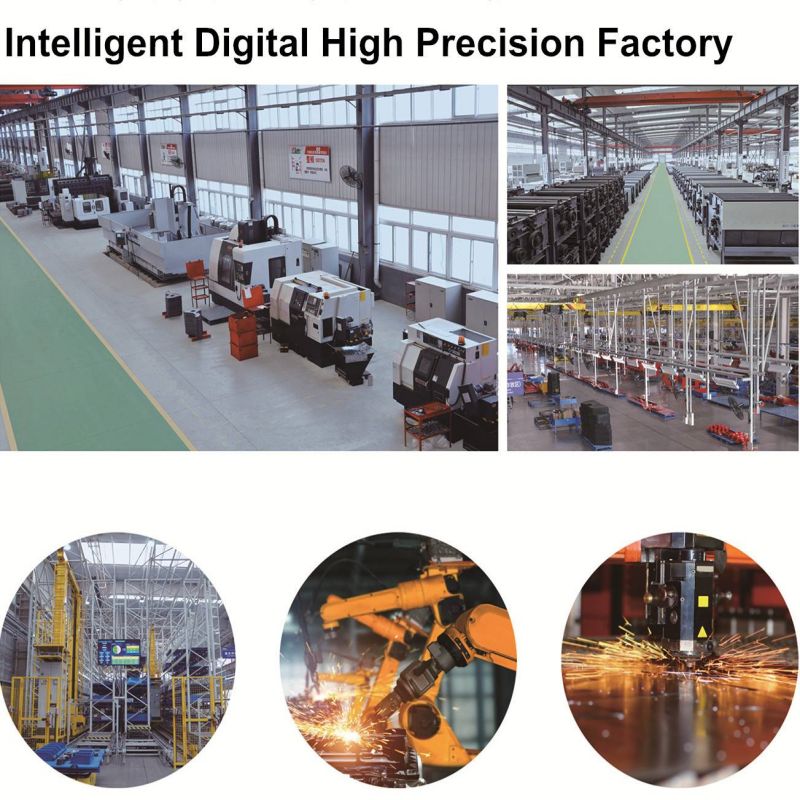

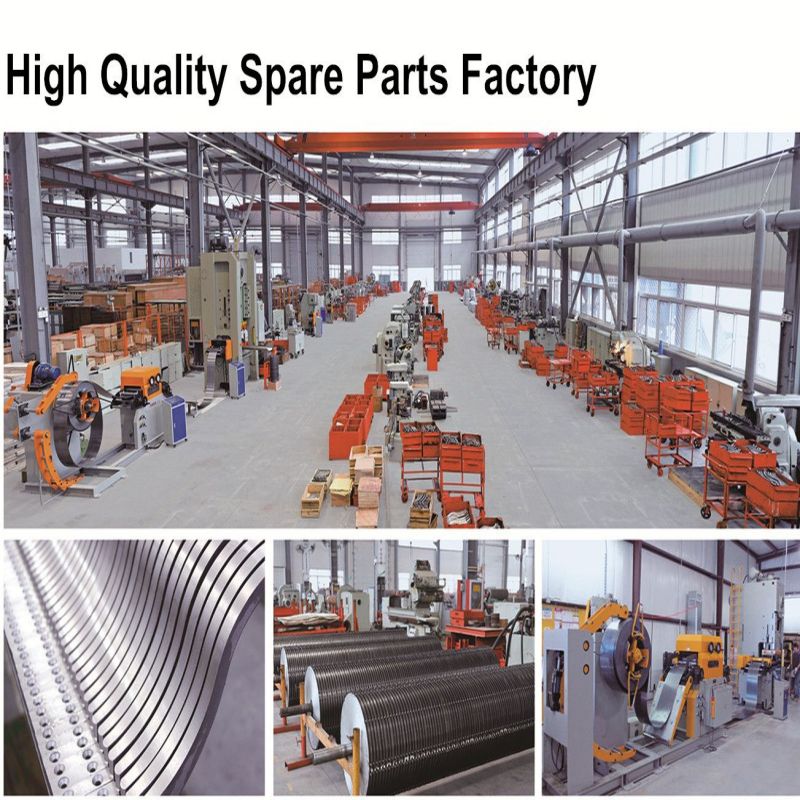

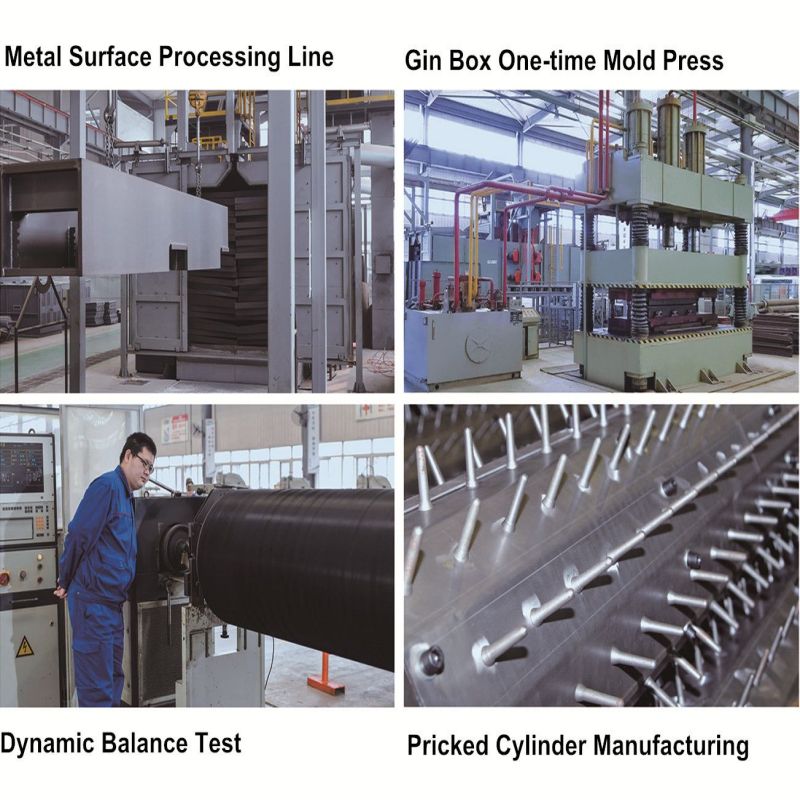

company information.jpg

company information.jpg

company information.jpg

company information.jpg

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd has four technical centers and manufacture bases in Jinan Shandong, Wujiaqu Xinjiang, Hailar Inner Mongolia and Montgomery USA , three national high-tech enterprises and six provincial innovation platforms , leading the technological progress of the industry for many years.It is a high-tech enterprise in Shandong Province, the technical support unit of "National Key Promotion Program of Scientific and Technological Achievements" and the undertaking unit of "13th five-year plan" National Key Research & Development Program.

company information.jpg

company information.jpg
